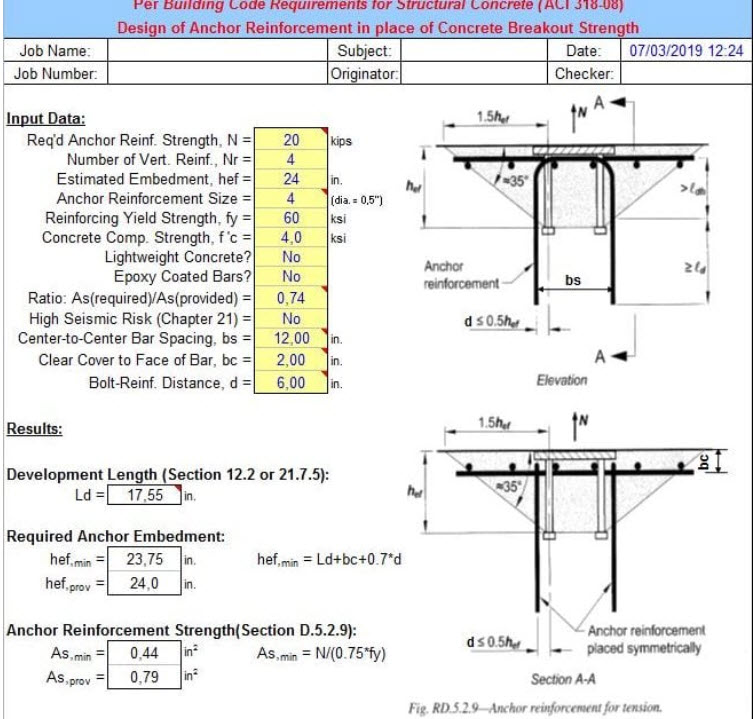

ANCHOR REINF - ANCHOR REINFORCEMENT ANALYSIS
Anchor Reinfxls is a MS-Excel spreadsheet workbook for the analysis of anchor bolt reinforcement to suppliment
tension/shear concrete breakout per ACI 318-08, Appendix D (Section D529 / D6i2_9)_ The spreadsheet is designed to
find the embedment strength of determined reinforcementwithin certain concrete parameters Tables and hgures have
been given adjacent to the required data cells in an attempt to self contain the calculations within the worksheet The
spreadsheet is protected but with no password required.
