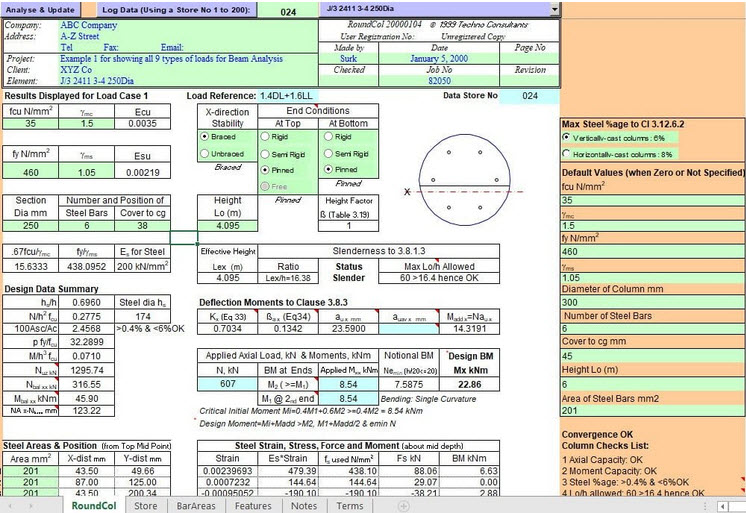

Circular Column AnaIysis and Design spreadsheet
Circular Column is an Excel Spreadsheet template for the design of Circular columns using B881 i 0. Because of its
shape, all columns are considered as subjected to uniaxial bending.
When it is required to consider a column with bi-axial bending, the two eccentricities can be combined to make it a
column having one eccentricity moment. RoundCol can hold design information for up to 200 columns. Using a pull
down combo box, the design information for any column can be retrieved, amended and re-saved for design use as and
when necessary. Each Column in RoundCol can have up to 6 Loading Cases.
Although the design results are displayed for one load case at a time, Circular Column checks the design for all 6
loading cases in one step. lf a column fails the design checks for any of its load cases, the Fail-Code is shown
indicating the failure. Detailed results for any load case can be displayed by the click of its radio button and also
printed as and when required.
