CityEditor for Sketchup 2.18.2
Import, Editing and Export of CityGML Models using SketchUp.
CityEditor
Roof Surfaces

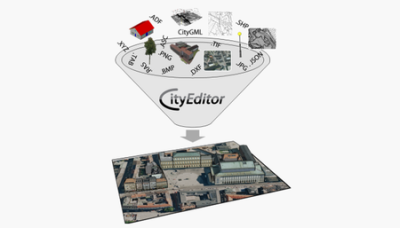

The CityEditor allows the import, editing and export of CityGML models and geo data using SketchUp.
After the editing of imported model data in SketchUp they can be exported from SketchUp as CityGML models, 3D-PDF documents and interactive 3d web presentations that can be displayed by the CityBrowser.
CityEditor
Import, Editing and Export of CityGML Models using SketchUp
Roof Surfaces
General
The CityEditor allows the import, editing and export of CityGML models and geo data using SketchUp.
During the file import, the CityEditor does not only take over the geometry and materials of the source files but also imports object attributes. Moreover, editing mechanisms for those attributes in the CityGML-specific attribute scheme as well as a feature for the export of edited models to CityGML are available.
After the editing of imported model data in SketchUp they can be exported from SketchUp as CityGML models, 3D-PDF documents and interactive 3d web presentations that can be displayed by the CityBrowser.
Import
The CityEditor imports
CityGML models, building models (other than CityGML) from .dxf-, .ply-, .cco, .3mf- and .stl-files,
Terrain models from .asc-, .ras-, .xyz-, .adf-, .tif-, .dem- and .dxf-files,
Terrain textures from .jpg-, .png-, .bmp-, .tif-, .ecw- and .jp2-files as well as OpenStreetMap or WMS web sources,
Point, line, and polygon elements from .shp-, .dxf-, .gml-, .json-, .geojson- and .tab-files,
point clouds from .xyz- and .csv-files,
as well as triangulated surface models from .ply- and .obj-files.
Model Editing
Editing of CityGML Attributes
The CityEditor provides tools for the displaying, editing, adding, and deleting of standard attributes for buildings and surfaces, as well as of generic attributes for buildings.
Editing of Model Geometry
Faces may be furnished with one of the CityGML surface types (e.g. WallSurface) as well as with a LoD. For grouped elements the CityGML object type can be applied.
Correction Functions
A correction function can be applied to faces that interchanges their front and back sides while maintaining their materials. The faces will optically not change in SketchUp. This correction aims at reducing the models to actually visible elements and assigning the front and back sides properly for the CityGML export.
Export
The CityEditor allows an export of SketchUp models to CityGML, 3D-PDF documents and CityBrowser projects. During the CityGML export, objects modeled in SketchUp will be exported as CityGML models including their CityGML-specific object and face classification and attributes. For the purpose of a 3D-PDF export SketchUp models may be newly generated or integrated into existing PDF documents.
Windows 10, Windows 8 / 8.1, Windows 7
154MB
*
