Analysis of Concrete Slabs on Grade

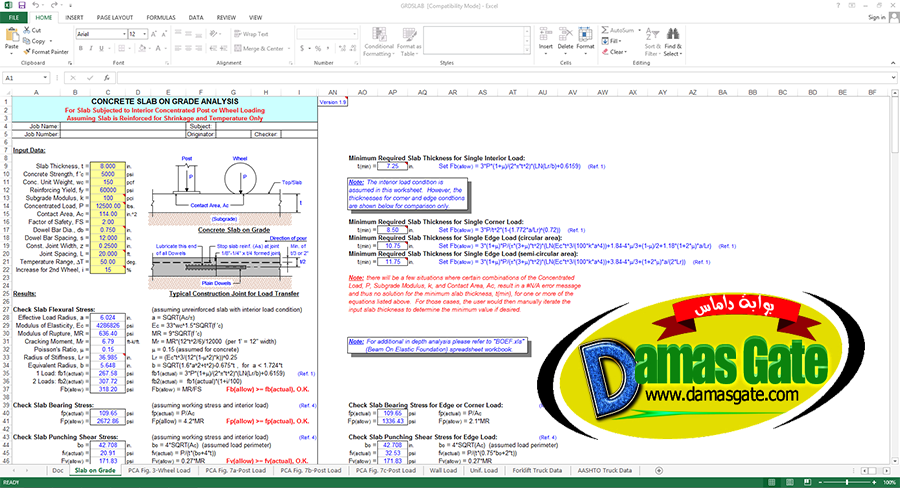

GRDSLAB is a spreadsheet program written in MS-Excel for the purpose of analysis of concrete slabs on grade.Specifically, a concrete slab on grade may be subjected to concentrated post or wheel loading. Then for the given parameters, the slab flexural, bearing, and shear stresses are checked, the estimated crack width is determined, the minimum required distribution reinforcing is determined, and the bearing stress on the dowels at construction joints is checked. Also, design charts from the Portland Cement Association (PCA) are included to provide an additional method for determining/checking required slab thickness for flexure.The ability to analyze the capacity of a slab on grade subjected to continuous wall (line-type) load as well as stationary, uniformly distributed live loads is also provided.This program is a workbook consisting of eight (8) worksheets, described as follows:
Doc – Documentation
Slab on Grade – Concrete Slab on Grade Analysis for Concentrated Post or Wheel Loading
PCA Fig. 3-Wheel Load – PCA Figure 3 – Design Chart for Single Wheel Loads
PCA Fig. 7a-Post Load – PCA Figure 7a – Design Chart for Post Loads (k = 50 pci)
PCA Fig. 7b-Post Load – PCA Figure 7b – Design Chart for Post Loads (k = 100 pci)
PCA Fig. 7c-Post Load – PCA Figure 7c – Design Chart for Post Loads (k = 200 pci)
Wall Load – Concrete Slab on Grade Analysis for Wall Load
Unif. Load – Concrete Slab on Grade Analysis for Stationary Uniform Live Loads
