Engineering Spread Sheet For Engineers and Designers

This excel spreadsheet is useful and used for:


piping dimensions (150 lb 300lb 1500lb 900 lb. RJT etc)

flange weights (150# 300# 400# 1500#)

flanges (weld neck flange slip-on flange threaded flange lap joint flange blind flange)

tee’s and reducers (straight tee reducing tee conc. reducer eccentric reducer)

ELL’s (lap joint stub end)

pipe spans (based on using carbon steel pipe A53-GR B filled with water)

elliptical head dimensions (flanged and dished head ASME)

pipe tables

vertical vessel platform max. bracket spacing

stair design notes & fixed ladder design notes

oblique triangles right triangle

brace formulas (brace length formulas)

weights (structural plate weight)

girder formulas bolts (ASTM A325 & A490 bolts and nuts)

oversized and slotted holes

wrench clearance guide washer dimensions)

welded steel grating

structural tubing (square rectangular)

S tees structural tees (cut from S shapes)

W tees (cut from W shapes)

angles

miscellaneous channels & standard channels

adding calculator

HP shapes S shapes M shapes W shapes

weld-o-lets

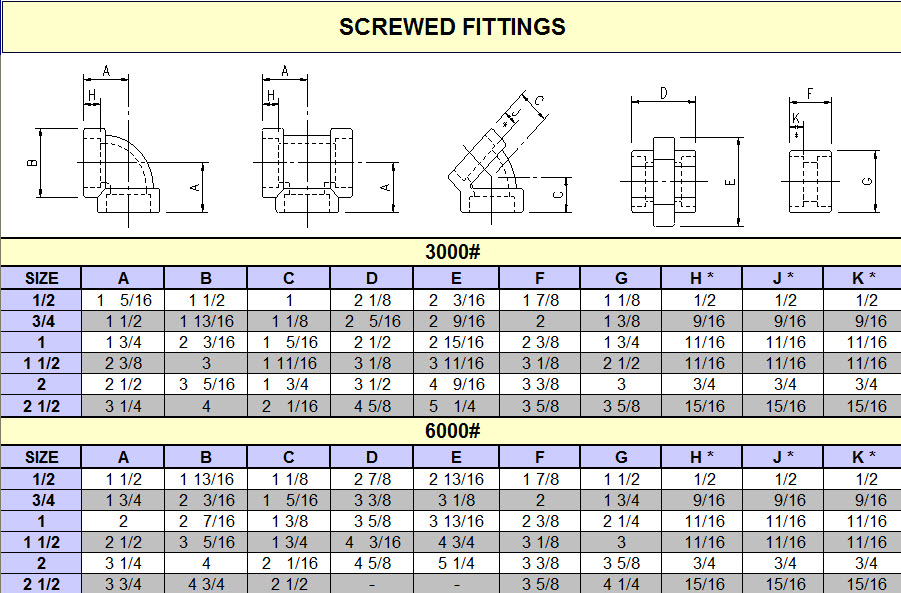

screwed fittings

*
