Concrete Short Column Analysis and Design

Calculates bending moment/axial force interaction diagram for rectangular or circular reinforced concrete column with typical or irregular rebar layout. Now calculates crack width under working stresses. Confirms ACI 318, AASHTO and AS3600 design codes.



ShortCol - investigation of reinforced concrete column section

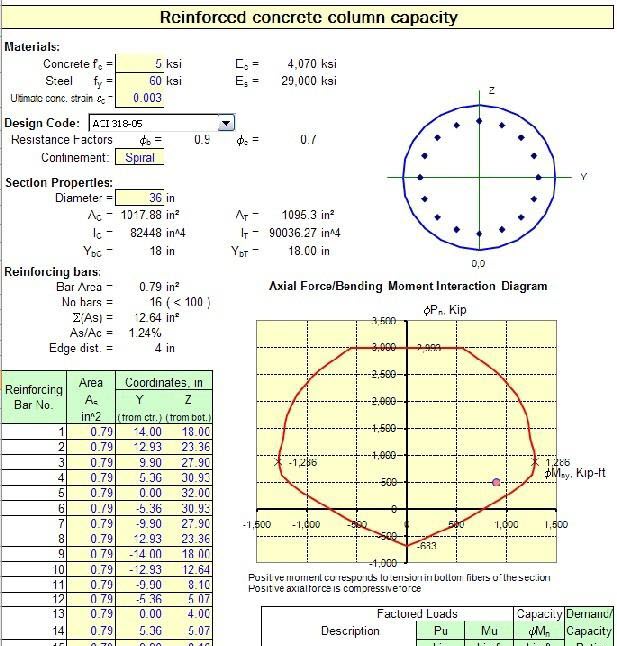

ShortCol computes ultimate strength of reinforced concrete column subjected to combined axial force and bending moment. Ultimate strength is found from strain compatibility analysis assuming equivalent rectangular concrete stress distribution. In addition, ShortCol calculates transformed properties of fully cracked reinforced concrete section at ultimate limit state and calculates crack width at service limit states.





Another features

Shortcol anlyses rectangular or circular shape concrete sections

Rebar wizard quickly generates various typical and irregular bar layouts

Crack width is calculated in accordance with ACI/AASHTO, British Standards, Eurocode 2 and AS3600



Column design conforms ACI 318, AASHTO, AS3600 codes

SI and US units


ShortCol limitations

Does not consider column slenderness and second order effects

Uses only unconfined concrete properties

Accepts only bonded to concrete reiforcing steel



The file includes the original (shareware) version and a little bit changed version
