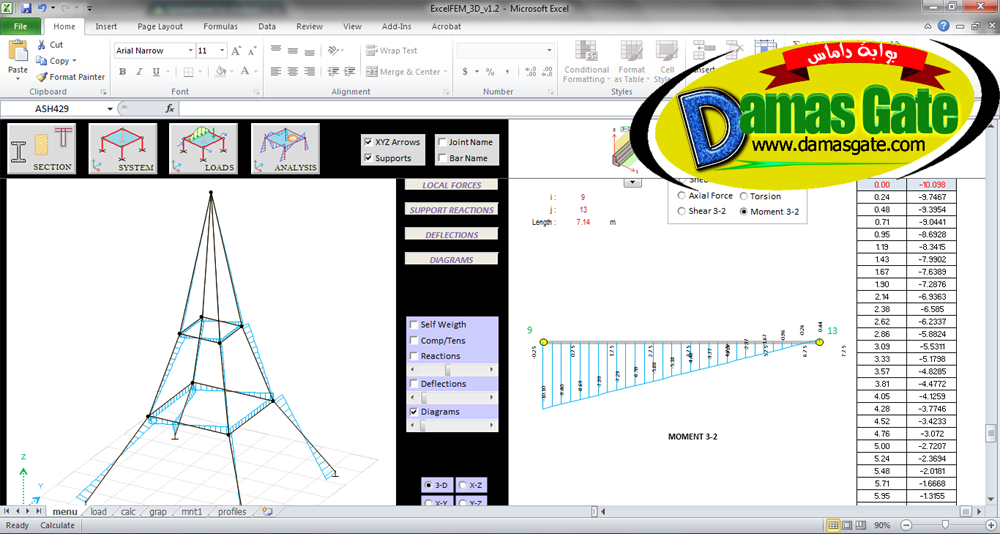

    Spreadsheet for Analysis 3D Frames FEM





    Static structural analysis of 3D linear elastic frames and trusses. Computes the static deflections, reactions, internal element forces using direct stiffness methods. Simply follow the 12 step process.







    PROPERTIES



    Materials

    Sections

    Supports



    NODAL POINTS & LOADS



    Nodal Points

    Nodal Loads



    MEMBERS & LOADS



    Members

    Point Load

    Moment Load

    Distributed Load



    CALCULATION RESULTS



    Member Forces

    Support Reactions

    Displacements



    DIAGRAMS



    Axial

    Shear

    Moment

    Deflections

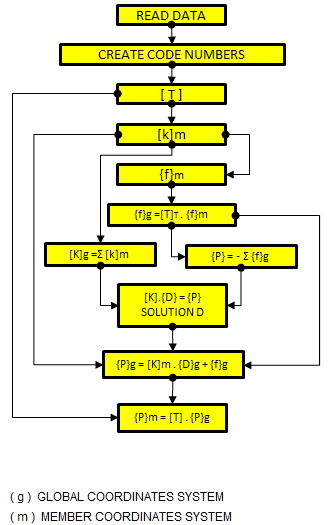

    FLOWCHART











    Download

    http://s18.alxa.net/s18/srvs2/02/003/FEM.rar


    Register to view the link
