Section Properties for Builtup and Unsymmetrical Sections
Spreadsheet program written in MS-Excel for the purpose of calculating section properties.
Two methods of input data are provided, either by adding of deleting "shapes" or by defining a polygon by a series of "points". Specifically, the centroid location and total area are determined, as well as the centroidal and principal axes moments of inertia, radii of gyration, and rotation angle.

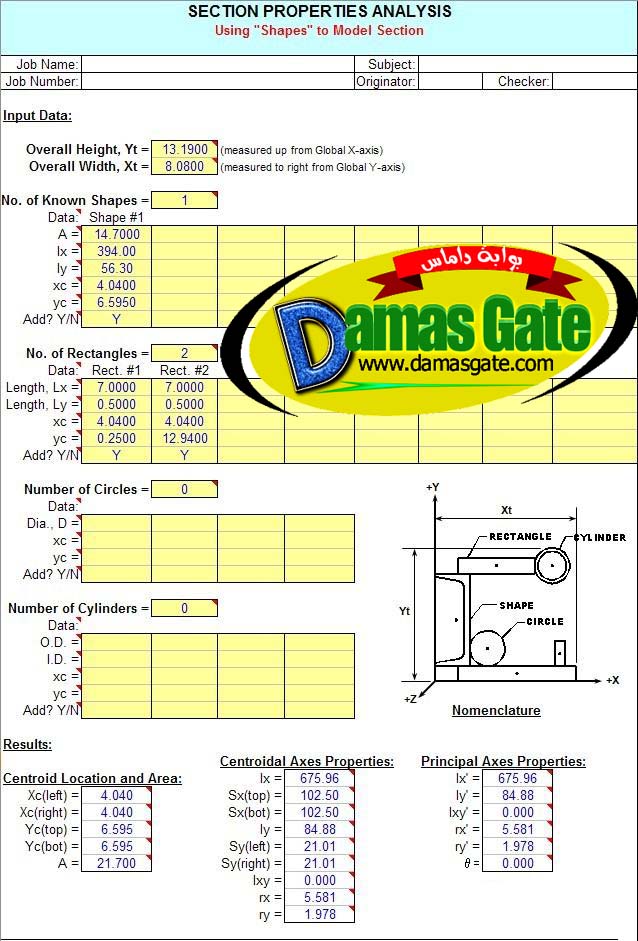

Section properties analysis using shapes to model section
Section properties analysis using up to 50 points to model section
Stress analysis for symmetric and unsymmetric sections
