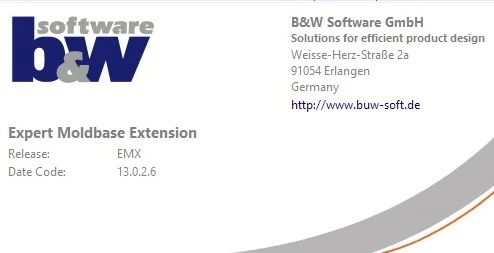

BUW EMX (Expert Moldbase Extentions) 13.0.2.6 for Creo 7.0
Creo Expert Moldbase Extension contains customized detailed slabs of slabs and individual elements from all leading suppliers to meet the requirements of major
standards in this area.
When creating a model block, Creo Expert Moldbase Extension automatically generates an assembly drawing, specification and slab drawings, taking into account the requirements of ESKD.
Mass components can be created directly in Creo Expert Moldbase Extension, or you can use mass components created in CreoTool Design.
Creo Expert Moldbase Extension provides a specialized graphical interface with schematic 2D views of both finished model block designs and individual components. At the same time, you can create and use your designs, components, types of used injection molding machines, enter in the database of your suppliers.
The choice of the main parameters of the components of the molds is carried out in a two-dimensional mode. When it is necessary to specify the parameters for placing a particular component, the designer refers to the three-dimensional structure. This approach greatly speeds up the mold design process.
As a rule, full-fledged three-dimensional models of the mold assembly with holes, grooves, etc. made in the plates are formed in an automated mode. In this case, all holes and grooves are dependent - when you delete a component for which these structural elements were made, they are also deleted. When you change the size and location of components, these geometries are automatically rebuilt.
Creo Expert Moldbase Extension automatically places fasteners, calculates the length of pushers and marks, and creates cuts along the contour of the part. To facilitate visualization, Creo Expert Moldbase Extension allows you to turn on / off the display of any component.
Creo Expert Moldbase Extension implements an animation-based mold reveal mechanism with an analysis for the intersection of components. The following calculations are possible:
