    CAD Assoсiative Interfaces for ABAQUS 6.8-6.13 x86 x64 [2013, ENG]

    And for direct transfer from CAD to ABAQUS and preinstalled ABAQUS 6.8-6.13
    Description: A set of plugins for CAD systems (CATIA V5, SolidWorks, ProE) that allow you to save CAD models in a format suitable for loading into ABAQUS, and if you have ABAQUS installed on your computer, transfer models from the CAD interface directly to the ABAQUS interface with preserving the parametric link between the models.

    CAD Assoсiative Interfaces for ABAQUS 6.8-6.13 x86 x64 [2013, ENG]

    Supported CAD:
    CATIA V5R18-V5R22 32/64-bit
    SolidWorks 2008-2014 64-bit only!
    Pro / E WF4-WF5, Creo 1.0 32/64-bit


    Year / Release Date: 2013
    Developer: Dassault Systemes
    Developer site: 3ds.com
    Bit depth: 32bit, 64bit
    Interface language: English
    Tablet: To save from CAD to ABAQUS format is not required, to transfer from CAD interface to ABAQUS a pre-installed and broken ABAQUS is required
    System requirements: Pre-installed CAD: CATIA V5R18-V5R22, SolidWorks 2008-2014 64-bit only, Pro / E WF4-WF5, Creo 1.0 (2.0 *)

    for Creo 2.0, during setup, you must select the option to manually specify the Сreo installation directory, select Creo 1.0 in the list of versions and manually specify the <Creo 2.0 progdir> \ Common Files \ Mxxx \ directory)
    For more details see post # 2

    Supported ABAQUS versions: 6.8-6.13

    Size: 256 MB

    Download
    *


    Register to view the link
    Tags: 2013, abaqus, assoсiative, cad, eng, interfaces, x64, x86
  • Saadedin
    Saadedin
    Thread Author
    Administrator
    • Sep 2018
    • 36100
    • 18,864
    • 2,861
    #2
    Code:
    Installation for Creo 2.0
Creo 2.0 is not listed in the list of available ProE versions, but it can still be installed for Creo 2.0
1. Necessary presets (see ProEnginerToAbaqus_AI.pdf, chapter 4.2.1)

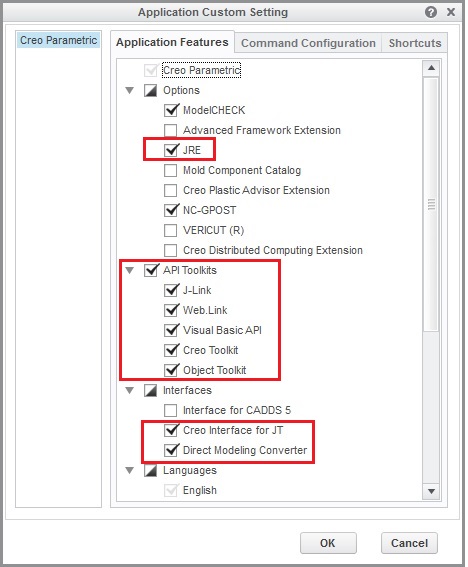

To run the plugin in any installed version of ProE / WF / Creo, API Toolkits, Interfaces and JRE modules must be installed
If you do not have these modules installed, run the Creo installer and install them ..


    2

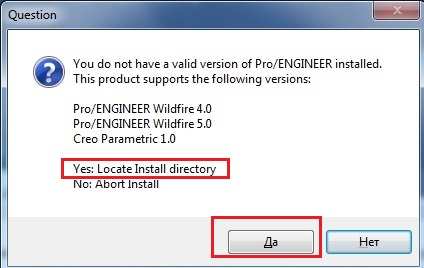

    When installing the plug-in, in the window informing that the installer did not find a suitable version of ProE on your computer, confirm (YES) that you want to select the ProE installation directory manually




    3

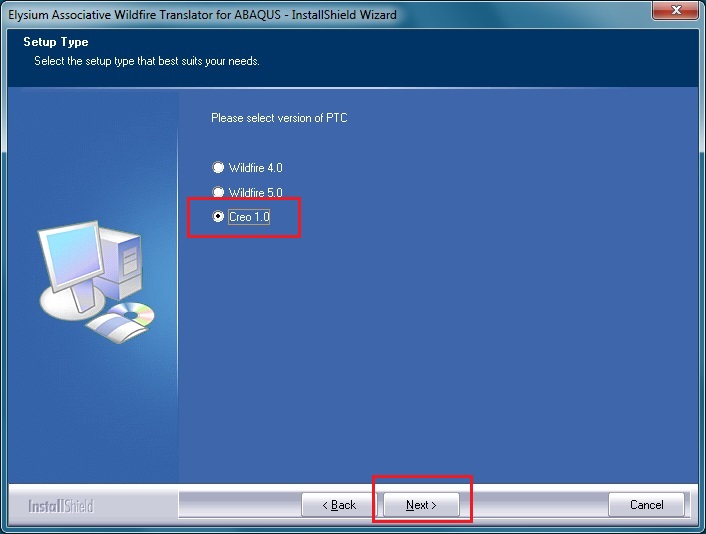

    In the ProE version selection window, check Creo 1.0





    4

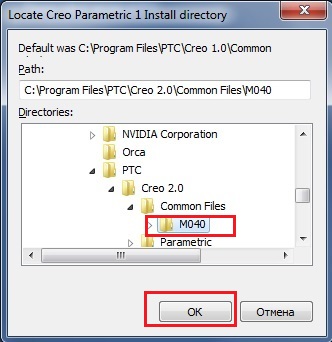

    In the ProE Program Directory Selection window, select <Creo 2.0 progdir> \ Common Files \ Mxxx \





    5

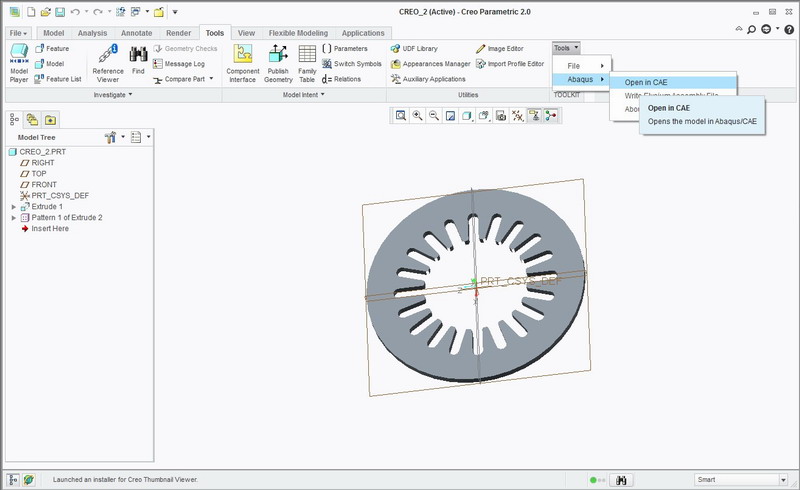

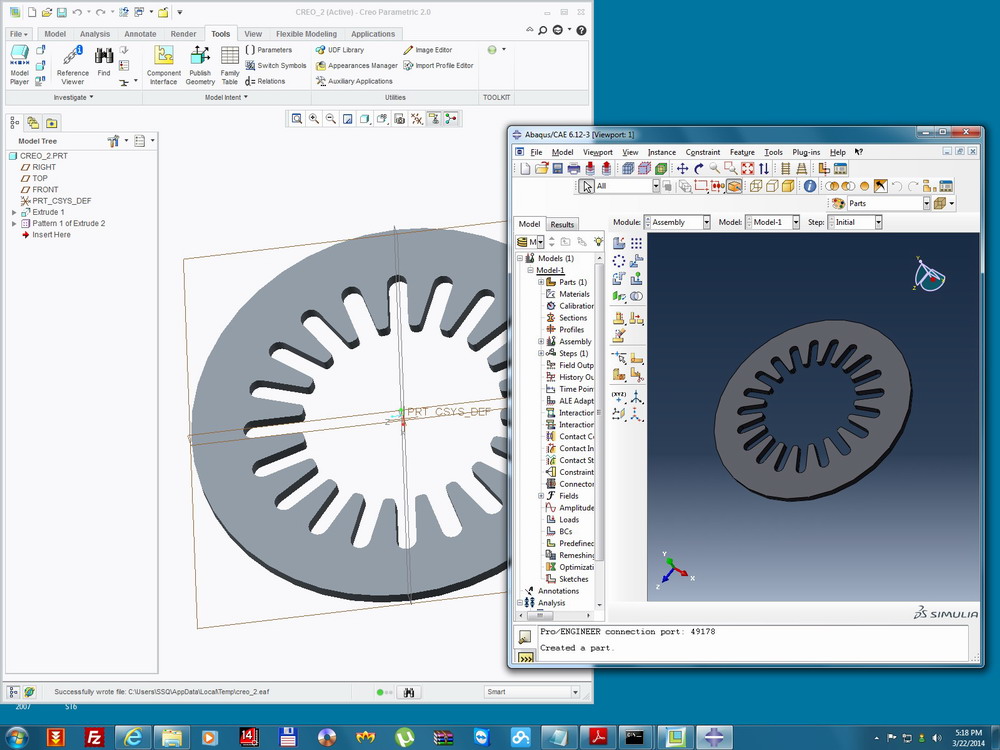

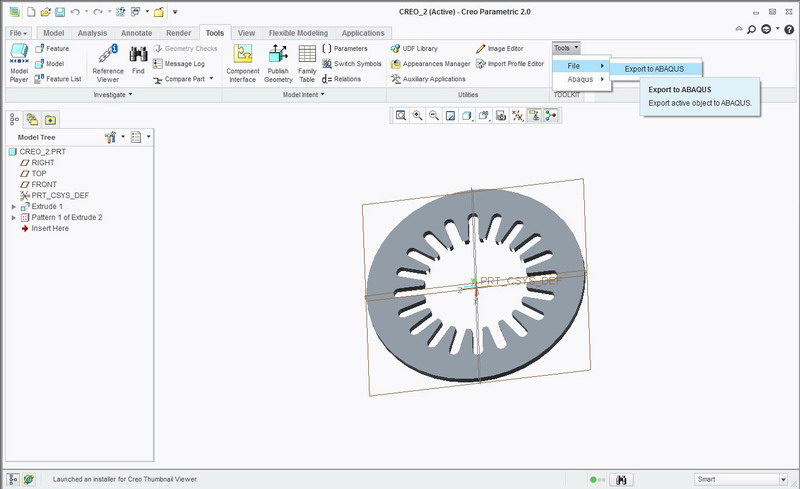

    Once the installation is complete, the plugin can be used in Creo 2.0








    6

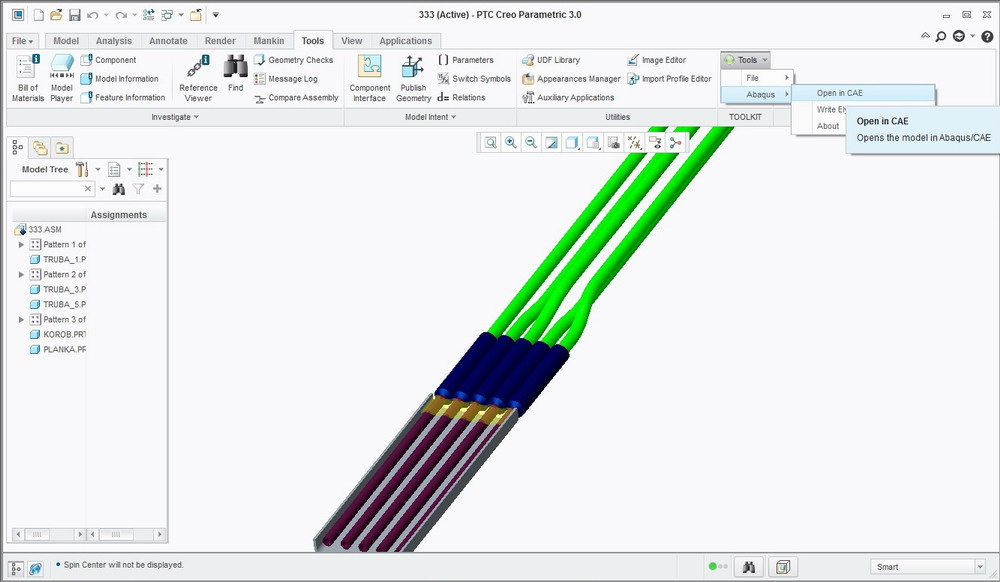

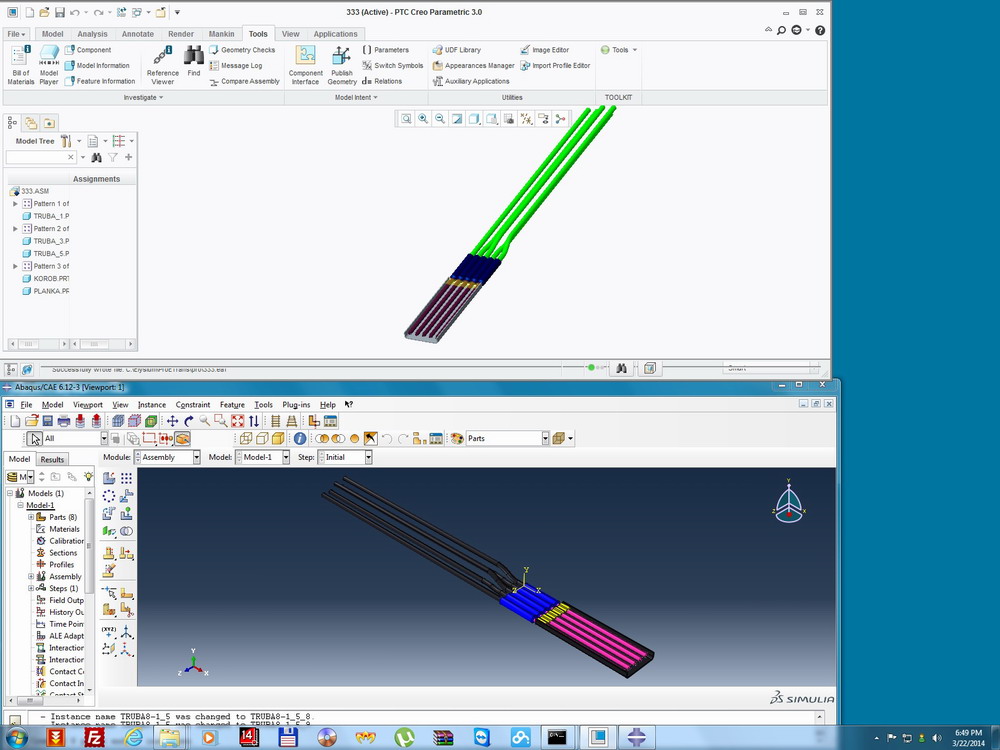

    Similarly, the plugin can be installed and run under Creo 3.0.
