    WJK CAD Solutions Curly Bracket 2025.0

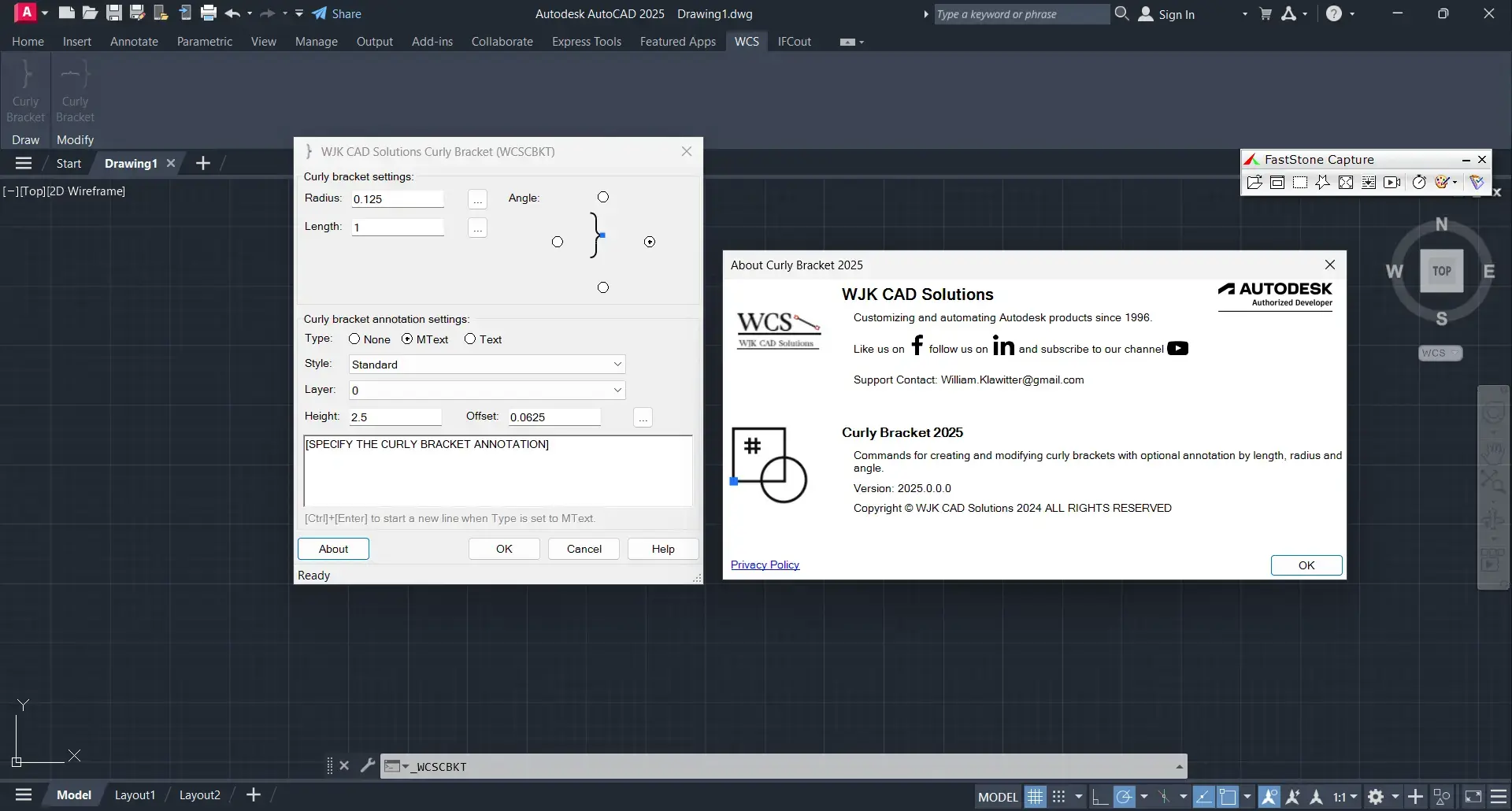

    The WCSCBKT command creates curly brackets with optional annotation by length, radius, and angle. Optional annotation options include None, MText and Text. Annotation can be drawn using a specified Text Style and drawn on a specified Layer that can differ from the curly bracket Layer. The Annotation’s Text Height and Offset can also be specified.

    The WCSMCBKT command modifies selected curly brackets with optional annotation by length, radius, and angle. Optional annotation options include None, MText and Text. Annotation can be modified to a specified Text Style and modified to a specified Layer that can differ from the curly bracket Layer. The Annotation’s Text Height and Offset can also be modified.

    Supported Version of Autodesk® AutoCAD® and AutoCAD Products
    The App supports the following AutoCAD 2025 products: AutoCAD, Autodesk® AutoCAD® Architecture, Autodesk® AutoCAD® Electrical, Autodesk® AutoCAD® Mechanical and Autodesk® AutoCAD® MEP.




    Virustotal
    *


    File size: 0.7 MB
