BIMSmartLab Roof Generator 1.0.8749
Are you looking for a simple and effective tool on how to slope a flat roof for drainage? Are you tired of creating flat roof slopes in Autodesk® Revit® manually one by one? Try our new Roof Generator tool to help you save time working on the model.
The Roof Generator tool is designed to simplify and speed up the modeling of a flat roof‘s slope for drainage. Simply select the drainage points, set the slope and the tool will automatically adjust the roof so that all roof planes have a constant slope towards the drainage points.
The Roof Generator includes

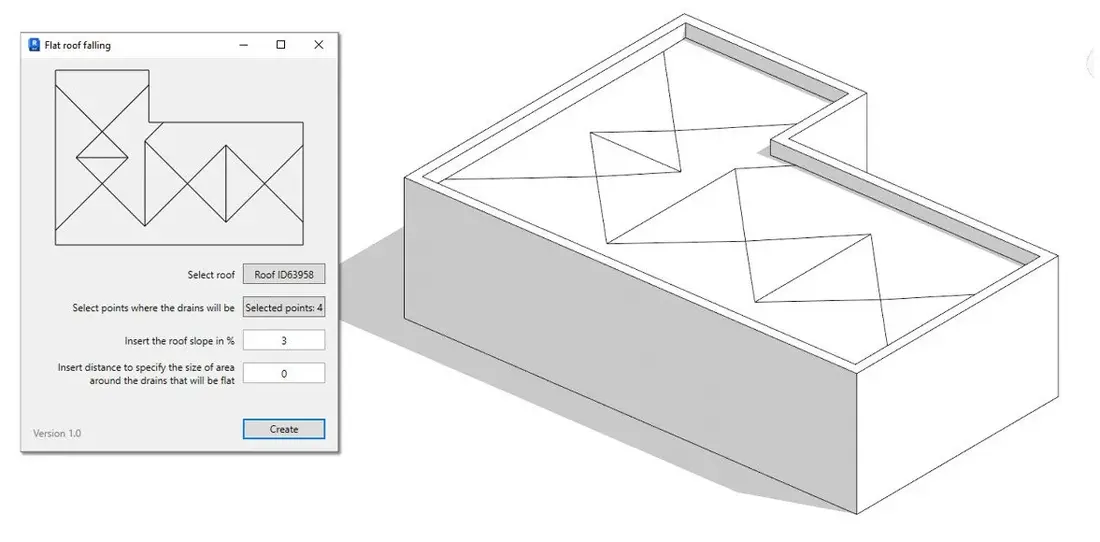

accurate floorplan preview of your flat roof with sloping planes
option to set any slope in %
possibility of creating a no-slope zone around the drainages
supports any number of drainages - also suitable for large objects
File size: 1.1 MB
Download
*
